Profile Analyzer

Accurate data and operational speed and efficiency are critical to a successful aerospace structural testing program. Industry-leading AeroPro software includes a Profile Analyzer feature that enables test engineers to gain the insight they need to achieve the highest fidelity test results while adhering to aggressive, competitive development schedules.

Mike Arens - AeroPro Software Development Team Lead demonstrates Profile Analyzer, a structural test optimization tool that provides a variety of detailed views into a test system's runtime performance, enabling engineers to quickly identify, examine and remedy areas of concern and improve overall accuracy and speed.

Introduced in AeroPro 7.35, Profile Analyzer enables easy and efficient scanning and comparison of test system performance attributes, such as runtimes, null pacing and servovalve output, from a channel-by-channel perspective on the Execution page, or profile row-by-row perspectives on the Configuration page.

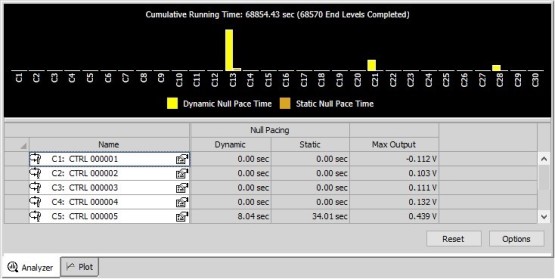

Execution Page / Analyzer Tab - channel perspective
Dynamic null pacing total time Static null pacing total time Maximum valve output

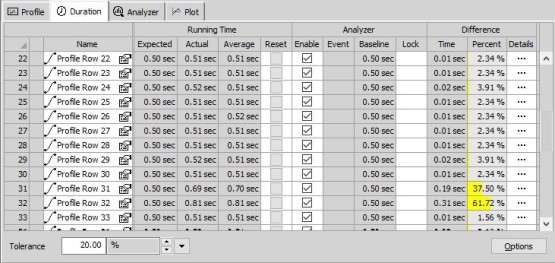

Configuration Page / Profiles / Duration Tab - profile row perspective
Expected row runtime Actual row runtime Average row runtime % runtime difference (expected vs actual)

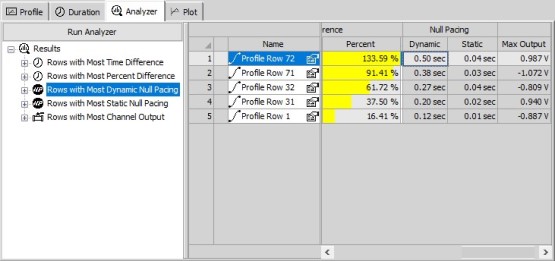

Configuration Page / Profiles / Analyzer Tab - profile row perspective Pre-programmed queries for identifying profile rows with:
Most runtime difference Most % runtime difference Most dynamic or static null pacing Most channel output

Optimize aerospace structural test accuracy, speed and efficiency.
