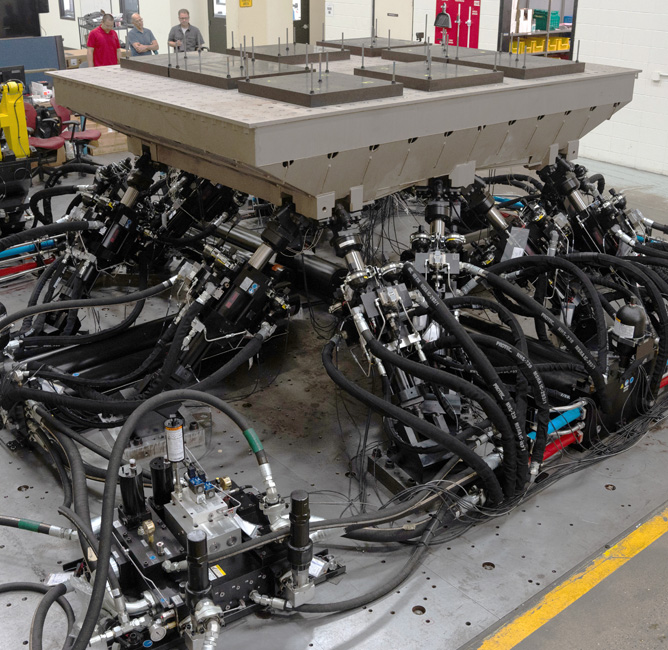

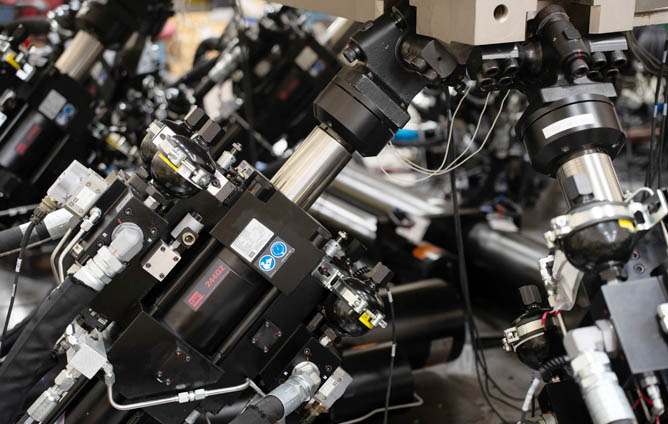

MTS responds to evolving EV test requirements with a new dodecapod MAST system, purpose-engineered for conducting vibration tests on large battery packs used in next-generation commercial and off-highway electric vehicles.

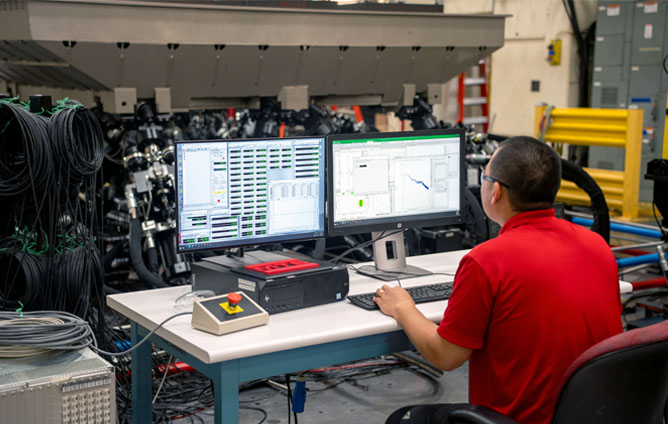

The Model 354 LG MAST combines robust simulation performance and compatibility with third-party environmental chambers, battery management systems, and specimen monitoring systems to meet test requirements defined in ISO 12405, UN R100, UN R136, and UN 38.3.
|Model 354 LG System Performance|
|Maximum Payload||2000 kg|
|Simulation Frequency*||up to 200 Hz|
|Table size||2.5 x 3.5 m|
|Linear Acceleration & Velocity*
||7 g 1.5 m/s|
|Lateral (Y)||5 g 1.5 m/s|
|Vertical (Z)||12 g 1.5 m/s|
|* maximum payload|
