Hybrid Simulation: mHIL Damper
The mechanical Hardware-in-the-Loop (mHIL) Damper solution combines a computational full-vehicle model with a physical damper test system(s) and damper specimen(s) to create a vehicle-level simulation environment that enables vehicle development engineers to benchmark, characterize, set-up, tune and validate damper systems at the sub-system and vehicle levels.
- Full subsystem evaluation with maneuver based testing
- Algorithm development and validation
- Fault and limit handling event testing
- Damper durability and characterization evaluations
- Damper pre-tuning
- Warranty program research
- Vendor certification
- Vehicle Dampers - Active
- Vehicle Dampers - Semi-active
- Vehicle Dampers - Passive
- Damper Support Infrastructure
Key Product Features
mHIL techniques compress vehicle development schedules by enabling meaningful evaluation and validation subsystems and vehicles earlier in development - well before the availability of vehicle prototypes
Real components can be substituted for difficult-to-model components when performing virtual simulations, enhancing characterization and improving model development
Reduces the number of vehicle prototypes required, minimizes instrumentation and data acquisition costs and streamlines final proving ground validation
Expected and unexpected fault conditions more easily detected and safely evaluated in a laboratory environment
A Mechanical Hardware in the Loop (mHIL) system provides a laboratory method of evaluating the effects of physical chassis elements (in this case the damper sub-system) on vehicle-level attributes (in this case vehicle handling).
- An MTS damper test system or systems with customer dampers installed on it represents the mechanical hardware, which is put in place of modeled damper element(s) within a vehicle simulation model
- The damper sub-system consists of the damper itself including necessary infrastructure and fixturing to simulate a realistic vehicle configuration.
- The damper system can be passive or actively controlled by an ECU.
- The damper system and the ECU are driven in the modeled vehicle on a modeled track as if they were on a real vehicle and track.

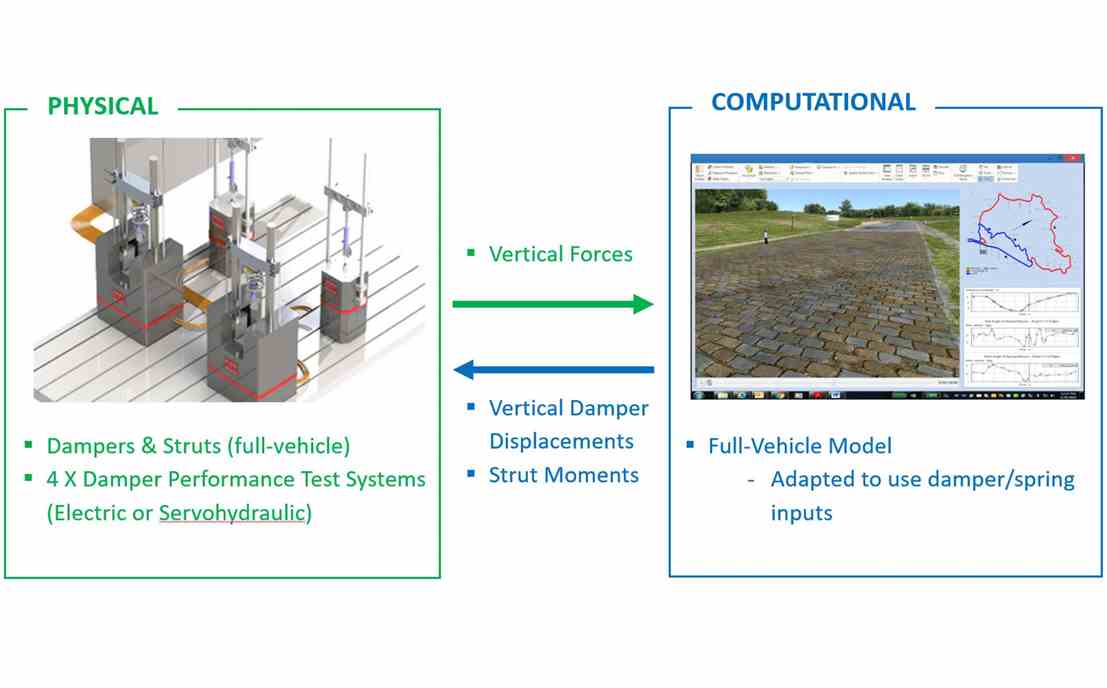

The damper test system applies loads and/or displacements to the mechanical damper hardware based on inputs from the vehicle simulation model, measures the hardware response, and then sends these responses back to the vehicle simulation mode. The mechanical hardware is included “in the loop” with the simulated vehicle.
The advantages of using the MTS mHIL Hybrid Simulation technique in the vehicle development process include:
- Analysis / CAE
- Real physical parts can be substituted for difficult-to-model components when performing virtual simulations
- Enhanced characterization to support better model development
- Objective and repeatable results
- Very repeatable tool to support a more efficient track program
- Generate accurate test results faster and earlier in the development process:
- Don’t need to wait for road loads or full vehicle prototypes
- Evaluation and validation at both the sub-system and vehicle level
- Rapid testing of platform and geographic variations
- Fast validation cycles
- Safer and less costly alternative to the track:
- Expected and unexpected fault conditions easily and safely evaluated in a laboratory environment
- Reduce the number of vehicle prototypes required
- Reduce vehicle instrumentation and data acquisition costs
- Reduce track dependency associated costs
