Model 632.65 High Temp Clip-On Displacement Gage

Common Features

• High-temperature clip-on displacement gages for fracture mechanics testing up to 1200°C (2200°F)
• Designed for KIC, JIC, and crack growth testing applications
• Replaceable extension rods minimize creep, thermal expansion error, and conduction losses
• Meet or exceed ISO 9513 Class 0.5 calibration requirements
• Seamless integration with MTS systems, including MTS 652 furnaces

Model-Specific Features

632.65X-03

• Optimized for front face contact on CT specimens
• Higher seating force maintains secure knife-edge engagement throughout the test
• Ideal for KIC testing where stable attachment and reliable displacement measurement are critical

632.65X-04

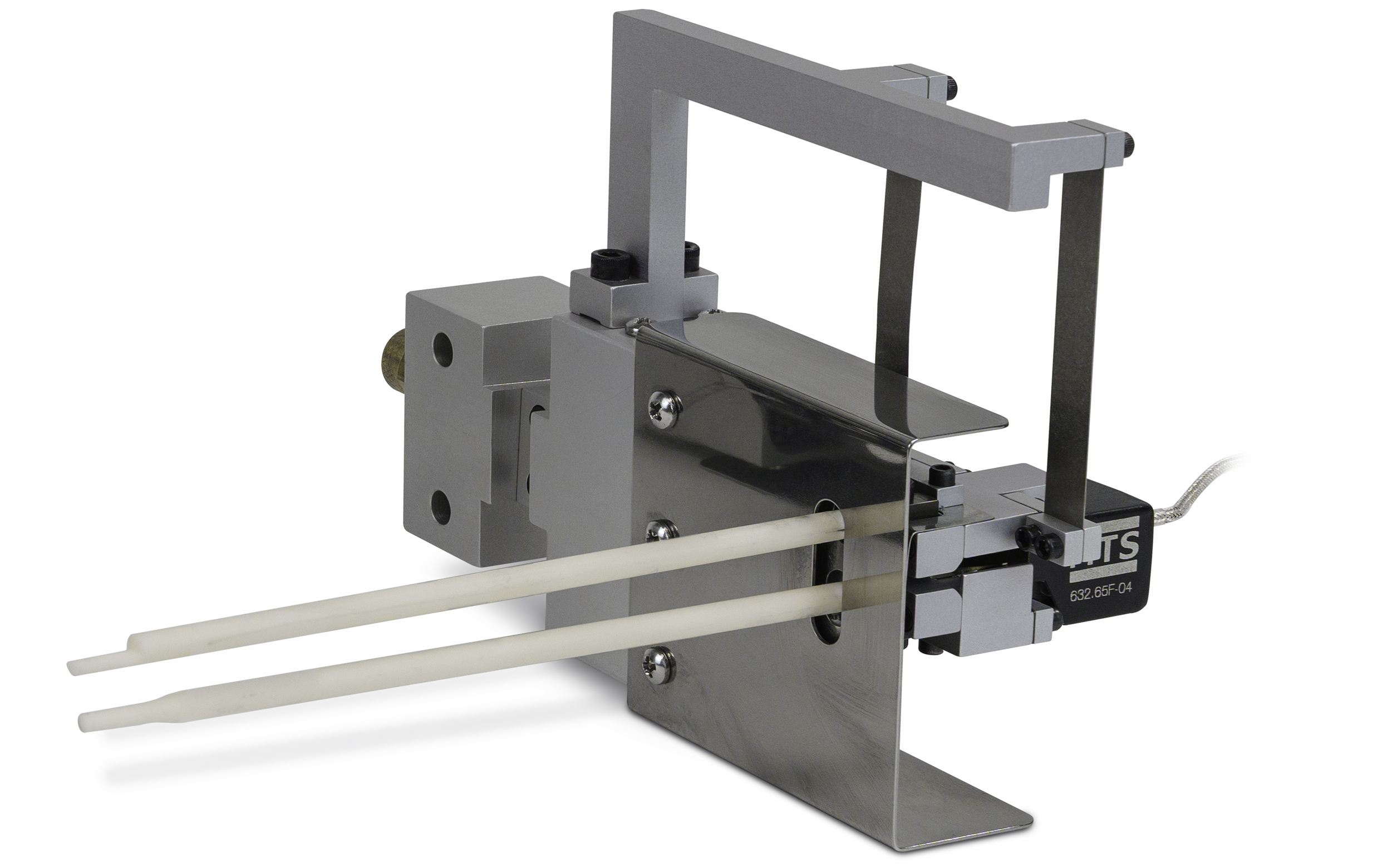

• Uses alumina rods; supports both front face and load line configurations on CT specimens
• Reaches the load line directly — ideal for JIC and J-based fracture mechanics methods
• Minimum gage length: 5 mm (0.2 in.)

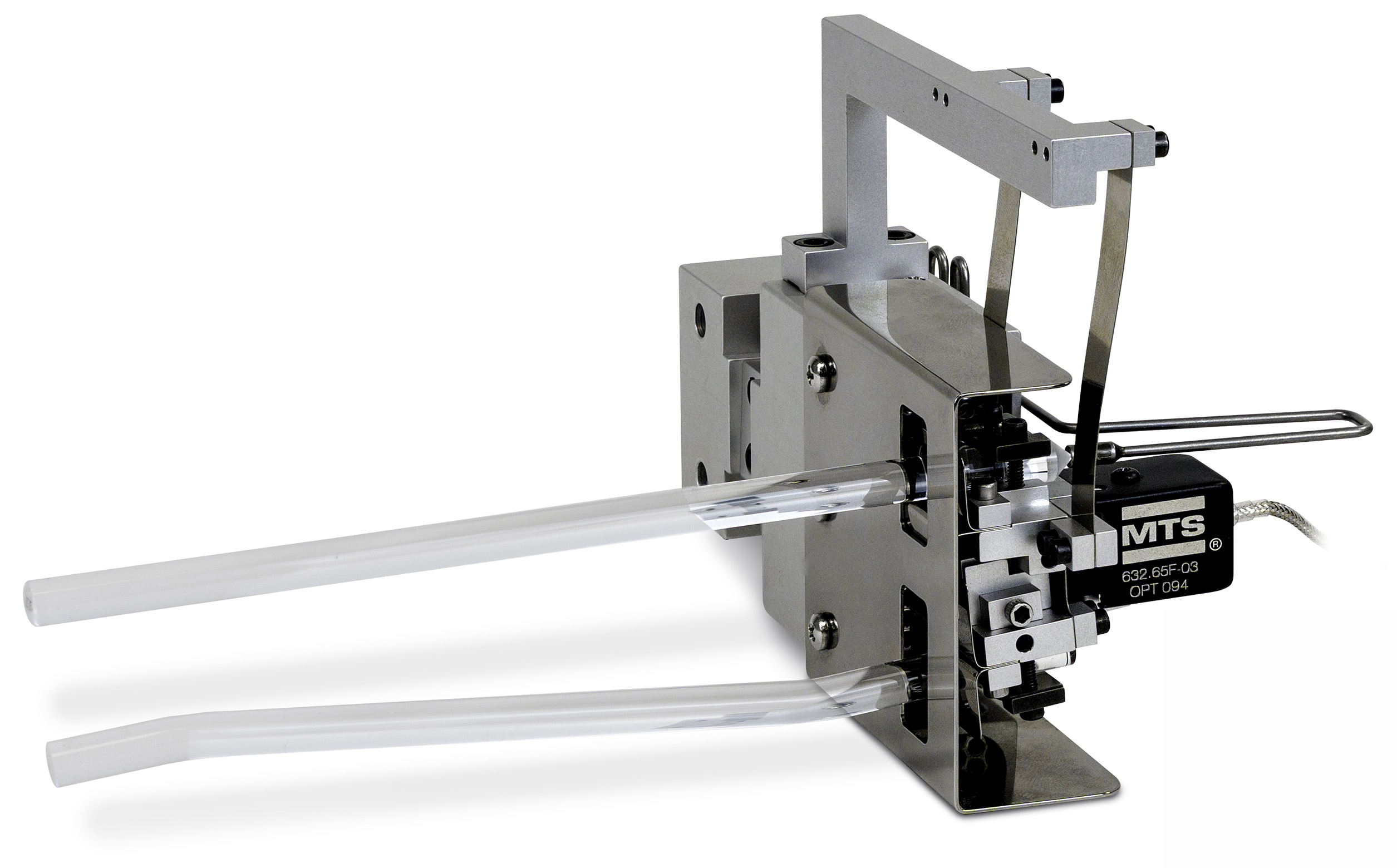

632.65X-03 Units that Function up to 1000°C for KIC, Fracture Toughness and Crack Growth Testing

Model	Compressed Gage Length	Travel	Frequency*	Heat Shield Clearance	Extension Rods Included**	Part Number
632.65F-03 – OPT 92	15.24 mm	+10.0/-1.0 mm	10 Hz	160.0 mm	Qty 2 sets, Quartz rods	047-403-201
632.65E-03 – OPT 92	0.6 in	+0.400/-0.040 in	10 Hz	6.30 in	Qty 2 sets, Quartz rods	047-403-202
632.65F-03 – OPT 94	15.24 mm	+10.0/-1.0 mm	10 Hz	112.8 mm	Qty 2 sets, Quartz rods	047-403-203
632.65E-03 – OPT 94	0.6 in	+0.400/-0.040 in	10 Hz	4.44 in	Qty 2 sets, Quartz rods	047-403-204

*Highest frequency can be achieved with small displacement

**More rod sets available to purchase. (Quartz rods are easily damaged: More rods may be necessary.)





632.65X-04 Units that Function up to 1200°C for KIC, JIC, Fracture Toughness and Crack Growth Testing

Model	Compressed Gage Length	Travel	Frequency*	Heat Shield Clearance	Extension Rods Included**	Part Number
632.65F-04	5 mm	+12.0/-0.5 mm	30 Hz	113 mm	Qty 2 sets, Ceramic Rods	058-533-001
632.65E-04	0.200 in	+0.450/-0.020 in	30 Hz	4.48 in	Qty 2 sets, Ceramic Rods	058-533-002
632.65F-04	6.0 mm	+11.0/-1.0 mm	30 Hz	113 mm	Qty 2 sets, Ceramic Rods	058-533-003
632.65E-04	0.250 in	+0.400/-0.040 in	30 Hz	4.48 in	Qty 2 sets, Ceramic Rods	058-533-004

*Highest frequency can be achieved with small displacement

**More rod sets available to purchase. (Quartz rods are easily damaged: More rods may be necessary.)



Model 632.65 High Temp Extensometer Brochure
