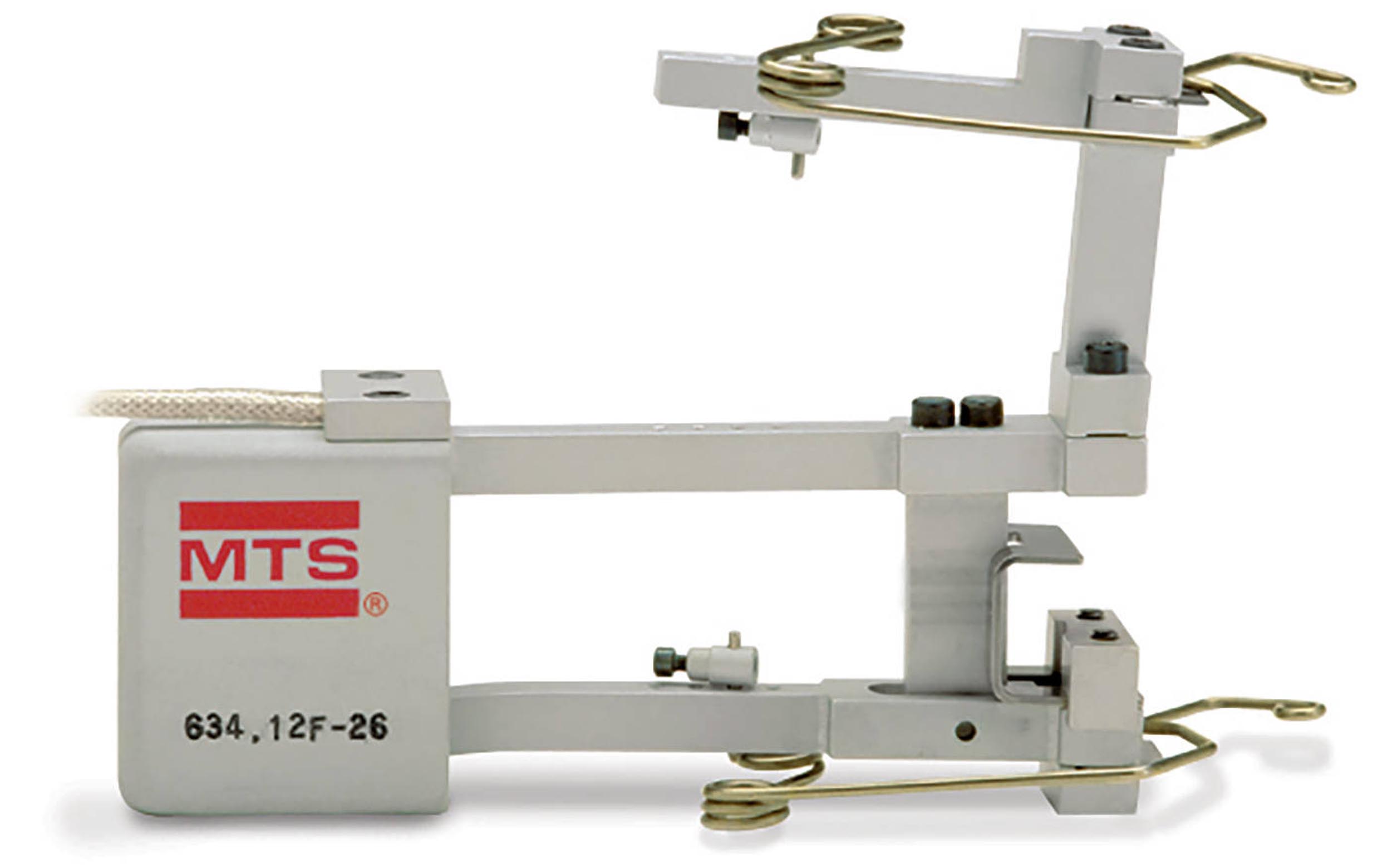

Gage length extender kits modify the gage length of existing extensometers to perform strain measurements on specimens which have non-standard gage lengths
Travel of the extensometers is not affected by the addition of extenders, but the strain measuring range will be reduced
Each extender/extensometer combination requires separate calibration
Metric Units
EXTENSOMETER MODEL
GAGE LENGTH WITH EXTENSION
PART NUMBER
634.11/12 (F)
50 mm
051-191-901
100 mm
051-191-902
150 mm
051-191-903
200 mm
051-191-904
Kit of 50, 100, 150, & 200 mm extenders
051-191-905
634.25 (E)
100
051-191-908
150
051-191-909
200
051-191-910
Kit of 100, 150, & 200 mm extenders
051-191-911
US Customary Units
EXTENSOMETER MODEL
GAGE LENGTH WITH EXTENSION
PART NUMBER
634.11/12 (E)
2 in
051-191-801
4 in
051-191-802
Kit of 2, 4, 6, and 8 in extenders
051-191-805
634.25 (E)
4 in
051-191-808
Kit of 4, 6, and 8 in extenders
051-191-911
Extenders for additional models and gage lengths available upon request.
