Criterion Electromechanical Conversion Adapters

Home > Materials Test Systems > Materials Test Grips > Criterion Electromechanical Conversion Adapters

Criterion Electromechanical Conversion Adapters

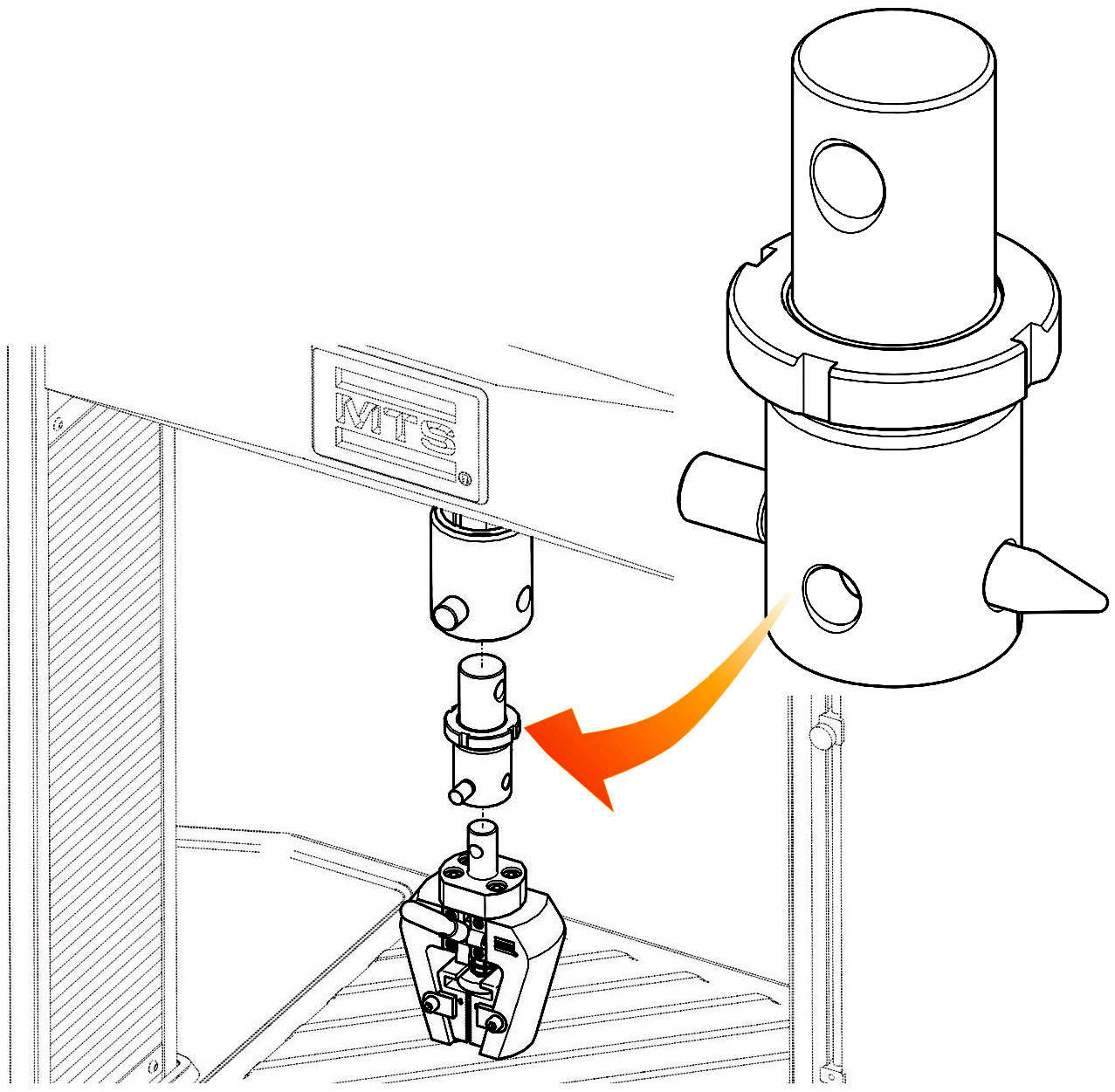

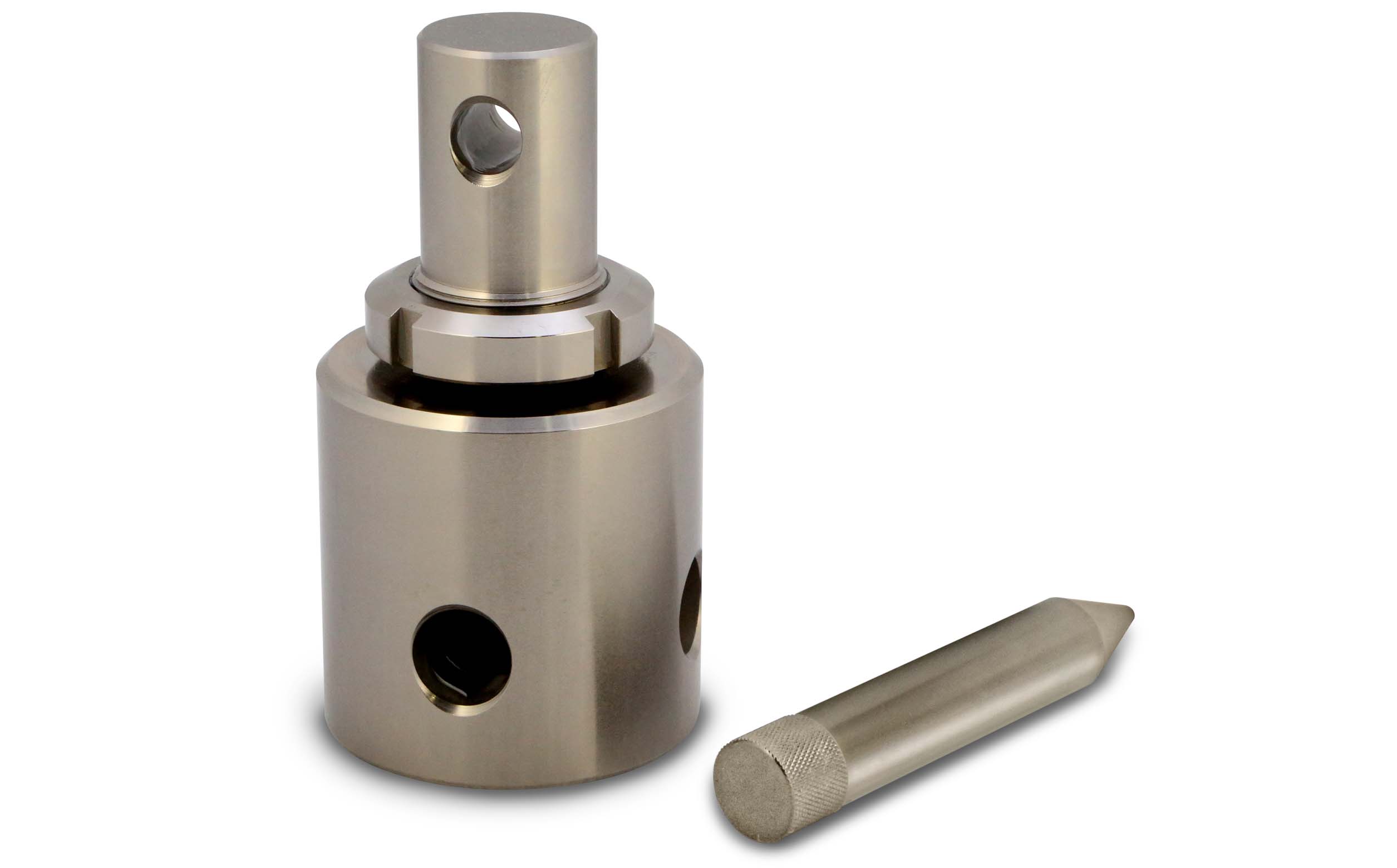

Grips and fixtures with smaller standard adapters can be used on the frames with larger standard clevis adapters with a set of suitable conversion adapters. The conversion adapters allows you to use the same stand grips and fixtures on both the Exceed and Criterion electromechanical series frames.

Applications

Test Specimens

Test Standards

See Full Product Info Request A Quote

Technical Overview

Conversion Adapters

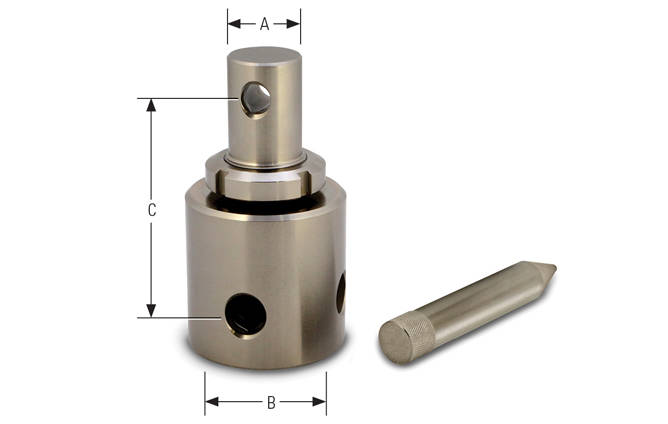

PART NUMBER	ATTACHMENT TYPE (m-f)	MAXIMUM LOAD CAPACITY	A (male clevis)	B (female clevis)	C (pin to pin height)	LOCK NUT
100-302-950	20-D	30 kN (6740 lbf)	Type 20	Type D	68.5 mm (2.7 in)	M24 x 1.25
100-302-947	40-20	30 kN (6740 lbf)	Type 40	Type 20	58 mm (2.3 in)	M45 x 2
100-302-952	D-20	30 kN (6740 lbf)	Type D	Type 20	72.5 mm (2.9 in)	M35 x 1.5
100-302-948	E-20	30 kN (6740 lbf)	Type E	Type 20	80 mm (3.2 in)	M64 x 2
100-302-951	40-D	100 kN (22480 lbf)	Type 40	Type D	91 mm (3.6 in)	M45 x2
100-302-953	D-40	100 kN (22480 lbf)	Type D	Type 40	89.5 mm (3.5 in)	M35 x1.5
100-302-949	E-40	100 kN (22480 lbf)	Type E	Type40	90 mm (3.5 in)	M64 x2
100-260-836	E-D	150 kN (33720 lbf)	Type E	Type D	97 mm (3.8 in)	M64 x 2
100-281-224	F-E	150 kN (67440 lbf)	Type F	Type E	160 mm (6.3 in)	M95 x2
