Home > DNW

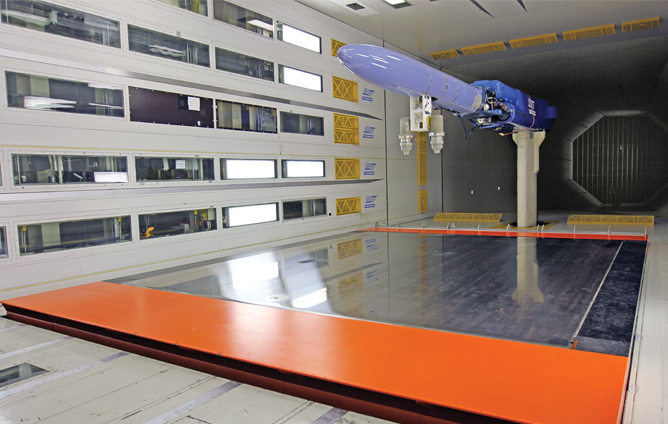

DNW: Replicating the Aerodynamic Phenomena of Takeoff and Landing

DNW (German-Dutch Wind Tunnels)
MTS delivers world’s largest rolling road system to facilitate highly accurate ground simulations and power testing.

CUSTOMER CHALLENGE

DNW (German-Dutch Wind Tunnels) is one of the world’s most advanced specialized wind tunnel test facilities. It hosts eleven wind tunnels for subsonic, transonic and supersonic testing, making it an ideal destination for manufacturers seeking deep insight into aerodynamic phenomena. The facilities are distributed over 5 locations in the Netherlands and Germany. The facilities are especially attractive to aircraft manufacturers, who can access a wide range of test capabilities and leverage the expertise of in-house experts who understand both the nuances of wind tunnel testing and related measurement techniques.

Manufacturers chose DNW due to its array of key simulation technologies, high-quality facilities and skilled personnel with years of experience in wind tunnel testing – manufacturers need all three.

Two of the most challenging tests DNW performs are ground simulation and powered testing, which integrates simulated jet engines. These tests characterize the complex interactions between the aircraft and the ground. Because the model is stationary, a completely flat moving ground plane below the model must be running at the same speed as the wind tunnel in order to achieve an accurate, meaningful simulation.

DNW had been using the same rolling road system since the 1980s. But more stringent requirements on belt flatness and the need to simulate the higher landing speeds of larger aircraft necessitated a new moving belt. Unfortunately, few providers were capable of meeting DNW’s exacting specifications.

MTS SOLUTION

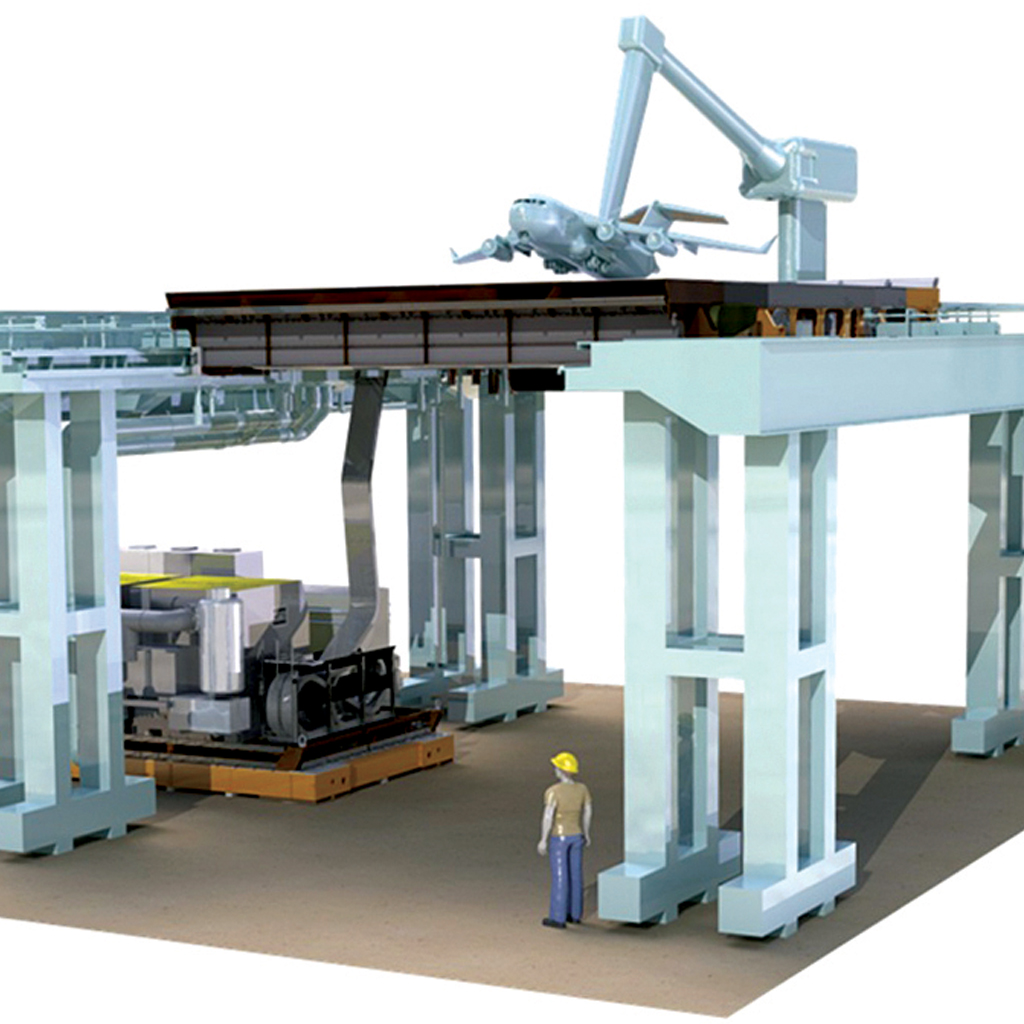

When DNW engaged MTS, they discovered a company fully capable of delivering a rolling road system that aircraft manufacturers would be unable to find anywhere else in the world.

DNW’s prior moving belt operated at speeds up to 43 meters per second (m/s). The new rolling road system developed by MTS nearly doubles this rate, operating at speeds up to 80 m/s – equal to that of rolling road systems used for testing Formula 1 race cars. In addition, the MTS rolling road system is the largest of its kind. Measuring six meters wide, it is almost twice as wide as the next largest system.

Faster speed and greater width enable the rolling road to facilitate much more realistic ground simulations and power testing. During each test, a scale model aircraft is lowered toward the rolling road in phases. At each phase, flap configurations and power ratings are adjusted to simulate the aircraft’s actual operating conditions. Eventually the model is positioned very close from the surface of the rolling road. No contact takes place to avoid unpredictable interactions that could damage the wind tunnel, the rolling road and the test specimen.

These tests generate important information about how aircraft interact with the ground during takeoff and landing. Specifically, the tests help manufacturers evaluate how engines are integrated with wing designs and how new wing and flap configurations behave differently depending on the location of the engine. The tests also shed light on the drag effects of landing gear and high lift devices.

CUSTOMER BENEFITS

The immediate advantage of the MTS rolling road system is that it adds to the truly exclusive array of wind tunnel testing capabilities that DNW can offer. The system provides the most realistic simulations possible for manufacturers who seek to perform complete aerodynamic optimization of new aircraft, as well as upgrades for existing aircraft.


In addition to high-speeds, exceptional flatness and reliability, the rolling road system also makes the entire process more efficient. One downside of the prior system was the relatively frequent need for belt replacement. Belts in the new MTS rolling road system last much longer, so overall productivity is higher and test programs can be completed more cost-efficiently.


The MTS rolling road system is also more integrated into the wind tunnel’s infrastructure than the previous moving ground plane. The old system had to be controlled manually using a mechanism separate from that used to position the model. Now, test engineers at DNW can manage the speed of the rolling road automatically, without utilizing a different control interface.


Creating a rolling road system to accommodate DNW’s exacting specifications presented considerable challenges; success was only possible through the collaborative efforts of DNW and MTS engineers’ willingness to learn from each other. The DNW team fully expects this collaboration to continue as more aircraft manufacturers use the system and as new test applications emerge.


DNW (German-Dutch Wind Tunnels)

The speed, flatness and reliability of DNW’s MTS wind tunnel rolling road system enables manufacturers to accurately and efficiently replicate the unique dynamics surrounding aircraft takeoffs and landings

Download Case Study
Also of Interest:
  • Static Materials Test Systems >
  • Wind Turbine Test Applications >
  • Materials Tensile Test Applications >
Stay Connected
  • INDUSTRIES
  • Automotive
  • Materials
  • Aerospace
  • Biomedical
  • Civil Engineering
  • Rock Geomechanics
  • Energy
  • Rail
  • SALES & SUPPORT
  • Sales Offices
  • Services
  • Training
  • Parts
  • Customer Portal
  • SUPPLIERS
  • Terms & Conditions
  • Products & Services
  • Expectations
  • Workmanship Standards
  • Packaging & Labeling
  • Routing Guide
  • COMPANY
  • About
  • News
  • Careers
  • Shows & Events
  • Culture
  • Sustainability
  • History
  • Employment Verification
  • SOLUTIONS
  • Applications
  • Test Standards
  • Products
  • RESOURCES
  • Learning Center
  • Solution Finder
  • Quality
  • Product Safety
  • Patents
  • CONTACT US
  • SUPPORT: 952-937-4000
  • Online Request
  • Request A Quote
  • Sales Offices
  • BUSINESSES
  • MTS Systems
  • E2M Technologies
  • R&D Test Systems
  • MTS SANS China
    • © MTS Systems. All Rights Reserved
    • 952.937.4000
    • Privacy Policy
    • Terms Of Use
    • Terms & Conditions
    • Modern Slavery Act
    • Cookie Preferences
We use necessary cookies to make our site work. We'd also like to set up optional analytics cookies to help us improve it. We won't set optional cookies unless you enable them.
Decline Accept
We use necessary cookies to make our site work. We'd also like to set up optional analytics cookies to help us improve it. We won't set optional cookies unless you enable them.
Decline Accept
