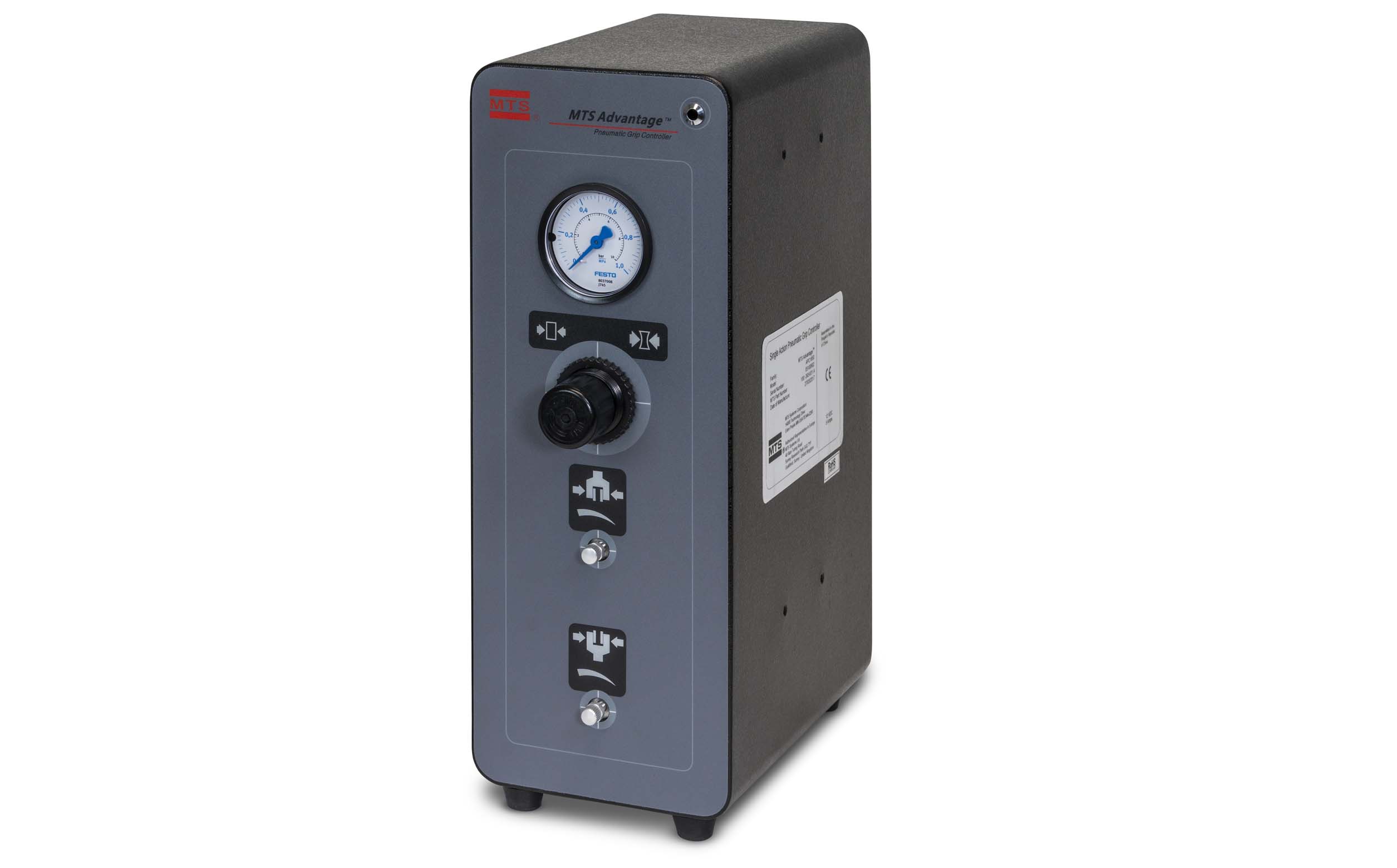

Advantage Pneumatic Grip Controllers

For Use With Single Acting Advantage Pneumatic Grips

• Provides open/close function for MTS Advantage Pneumatic Grips

• Regulates air pressure and controls air flow to upper and lower grips
• Choose either a hand switch or foot switch. Magnetic mounts on the

  hand switch enable convenient mounting on the load frame column or

  base. Rugged cover on the foot switch prevents accidently opening or

  closing the grips. Control sequence of the hand and foot switches is

  user programmable.

• Also enables grips to be opened or closed using Test Suite Software*
• Compatible 6 mm (1/4 in) diameter air tubing. Includes adapter to

  work with 4 mm (5/32 in) diameter tubing.

• Connects to load frame E-stop
• Operates on worldwide voltages (90-264 V AC, 47-63 Hz).

MTS Advantage Pneumatic Grip Controllers

DESCRIPTION	MAXIMUM DRY AIR INTAKE	MAXIMUM OUTPUT	PART NUMBER
Grip Controller	0.85MPa (125psi)	0.55 MPa (80psi)	100-393-631
Hand Switch	Not Applicable	Not Applicable	100-393-629
Foot Switch	Not Aplicable	Not Applicable	100-393-630
*May require TestSuite software update to operate. Not compatible with Test Works 4.
