Top 3 System Requirements for Accurate DMA Testing

DMA

What are the most important considerations when choosing a testing system for dynamic mechanical analysis?



1. NO MECHANICAL RESONANCES

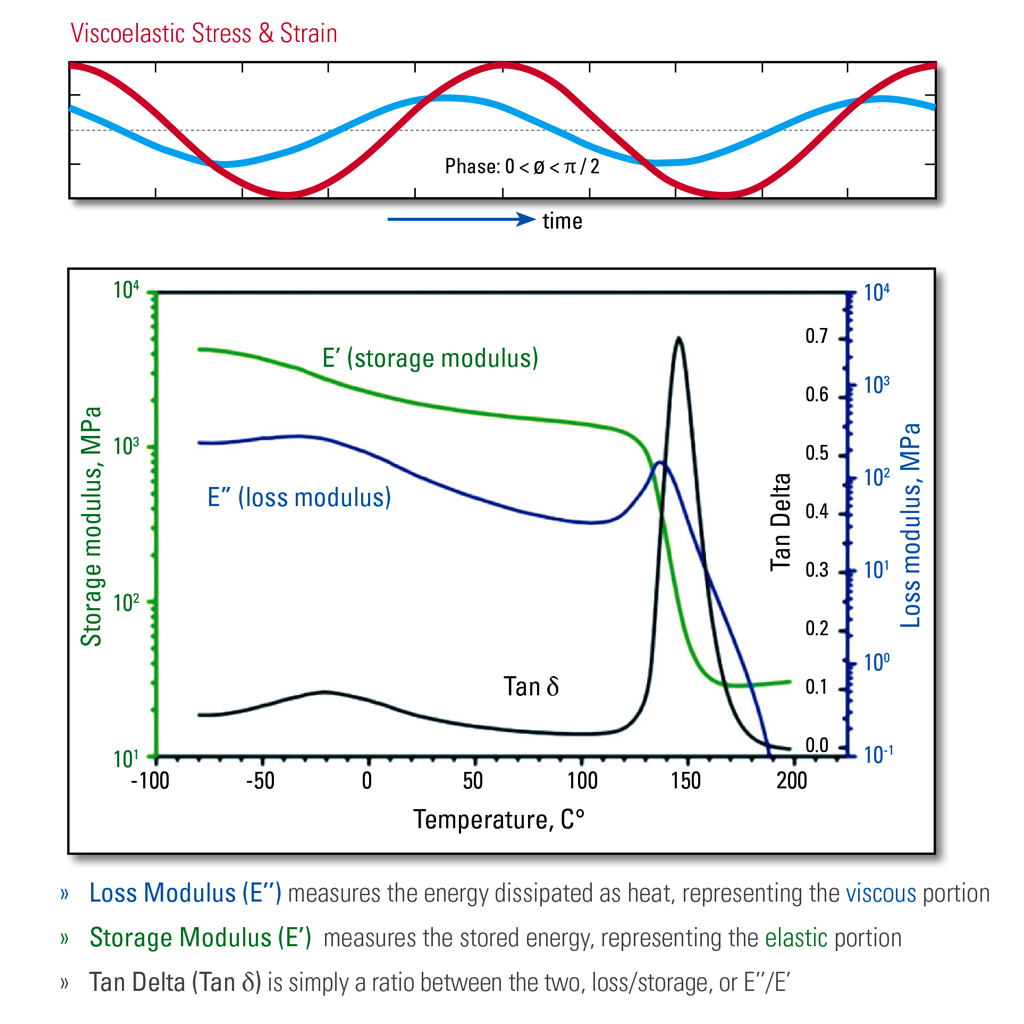

Dynamic Mechanical Analysis (DMA) testing is the study of the dynamic behavior of a material or component. Most often the DMA characteristics are studied as a function of varied velocity at a fixed displacement amplitude, hence as a function of varied frequency. As the excitation frequency is increased, transducer dynamic measurement accuracy can be adversely affected. High-frequency excitation can inadvertently produce mechanical resonant modes within the frame structure which will often corrupt the measurement accuracy of displacement and force transducers.



Typical frame-referenced displacement transducer measurements (either LVDT or Encoder) can be corrupted by erroneous motion at the transducer’s mounting reference base due to resonant vibrations. Force transducer measurements can be corrupted due to high acceleration induced upon a transducer due to resonant vibrations. This acceleration can result in significant inertial errors in the force measurement. There are techniques which can help reduce a transducer’s sensitivity to these unwanted vibrations, but these techniques are not without compromises. A more effective approach is to eliminate all frame mechanical resonances which may be present in the system’s operating range. With a dynamic calibration standard, a dynamic verification can confirm that your DMA measurements are not corrupted by any mechanical resonances. A good DMA system will not exhibit any detrimental mechanical resonant modes in the axis of measurement.



2. ABILITY TO MEASURE ACROSS EXTREME DYNAMIC RANGE AMPLITUDES



DMA testing requirements often push the bounds on the dynamic range amplitude of force and motion transducers. For some elastomer and thermoplastic materials, measurements are often required both above and below the glass transition temperature within the same test set-up. The material elastic modulus (and stiffness) can change by a factor of 1,000 when transitioning from temperatures below the glass transition in which the material is hard like glass, to temperatures above the glass transition temperature at which the material is rubbery and relatively soft.



This implies that if a constant sinusoidal force were applied throughout the test set-up, the material displacements in the glassy region could be relatively small. But that same sinusoidal force amplitude applied above the glass transition, when the stiffness could change by a factor of 1,000, means that the displacement above glass transition would also change by a factor of 1,000. Conversely, if a constant sinusoidal displacement were applied throughout the test set-up, the material forces in the rubbery region could be relatively small. But that constant displacement amplitude applied above the glass transition, when the stiffness could change by a factor of 1,000, means that the force amplitude would also change by a factor of 1,000. Both scenarios require a test system with the ability to measure across extreme dynamic range amplitudes.



3. SUPERIOR CONTROL OF DYNAMIC AMPLITUDE



Most elastomers and thermoplastics have a significant amplitude non-linearity, meaning that the measured elastic modulus (or stiffness) of the material is dependent on the amplitude of the applied excitation. Different input amplitudes (displacement or force) will result in different measured stiffness or modulus. In fact the purpose of some test programs is to measure this amplitude dependency. For these tests an amplitude sweep is applied with a fixed frequency and temperature and the resulting measured modulus is reported. For many tests the varied parameter is the excitation frequency and material temperature. But since the material modulus and the materials response are so amplitude dependent, it is extremely critical that the test input excitation amplitude is known and controlled accurately. This amplitude control becomes even more difficult at higher test frequencies.



Controlling the desired dynamic amplitude is most effectively accomplished though real-time servo-control loops and often through additional outer loop compensators. It is important that these control laws have high bandwidth and are robustly stable. Low bandwidth control loops or sluggish outer loop compensators can impose additional “learning” or “convergence” cycles on the specimen and cause internal specimen heating, resulting in misleading material characteristic data. Lack of extremely stable control laws can also result in control loop instability which often damages the specimen. In summary, superior control of dynamic amplitude is a critical DMA test system attribute.

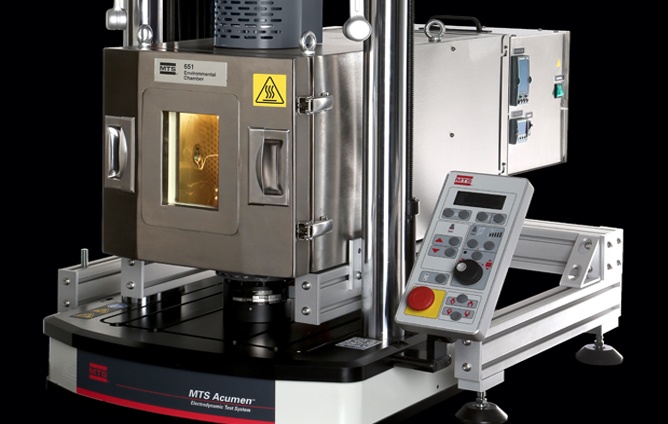

Acumen

Find out more about how MTS Acumen Test Systems can improve testing accuracy

Product Details
Also of Interest:
  • Static Materials Test Systems >
  • Wind Turbine Test Applications >
  • Materials Tensile Test Applications >
Stay Connected
  • INDUSTRIES
  • Automotive
  • Materials
  • Aerospace
  • Biomedical
  • Civil Engineering
  • Rock Geomechanics
  • Energy
  • Rail
  • SALES & SUPPORT
  • Sales Offices
  • Services
  • Training
  • Parts
  • Customer Portal
  • SUPPLIERS
  • Terms & Conditions
  • Products & Services
  • Expectations
  • Workmanship Standards
  • Packaging & Labeling
  • Routing Guide
  • COMPANY
  • About
  • News
  • Careers
  • Shows & Events
  • Culture
  • Sustainability
  • History
  • Employment Verification
  • SOLUTIONS
  • Applications
  • Test Standards
  • Products
  • RESOURCES
  • Learning Center
  • Solution Finder
  • Quality
  • Product Safety
  • Patents
  • CONTACT US
  • SUPPORT: 952-937-4000
  • Online Request
  • Request A Quote
  • Sales Offices
  • BUSINESSES
  • MTS Systems
  • E2M Technologies
  • R&D Test Systems
  • MTS SANS China
    • © MTS Systems. All Rights Reserved
    • 952.937.4000
    • Privacy Policy
    • Terms Of Use
    • Terms & Conditions
    • Modern Slavery Act
    • Cookie Preferences
We use necessary cookies to make our site work. We'd also like to set up optional analytics cookies to help us improve it. We won't set optional cookies unless you enable them.
Decline Accept
We use necessary cookies to make our site work. We'd also like to set up optional analytics cookies to help us improve it. We won't set optional cookies unless you enable them.
Decline Accept
