Home > Ground-breaking Seismic Simulation Method

Tongji University: Ground-breaking Seismic Simulation Method

MTS  - Tongji University
Tongji University teams with MTS and the University of California-Berkeley to transform civil hybrid simulation.

CUSTOMER CHALLENGE

Tongji University in Shanghai, one of the oldest and most prestigious universities in China, is a leader in pursuing new testing methods to help civil engineers improve their designs. The College of Civil Engineering at Tongji University is home to both the Department of Bridge Engineering and the State Key Laboratory of Disaster Reduction in Civil Engineering. Here, Dr. Chengyu Yang is a key professor in the research division for seismic design of bridges, conducting tests that help reduce the effects of devastating earthquakes on bridges, buildings, tunnels and many other civil structures.

Among his lab’s biggest challenges is the tremendous mass and size of civil structural specimens. It is often times impractical to conduct shake table tests with full civil structures in a laboratory setting, so researchers must conduct seismic simulations on much smaller scale physical models, often 1:100 or even 1:200 scale. The problem with this approach is that the smaller the model, the less meaningful the test results. Smaller models simply do not react to dynamic seismic inputs in the same manner as larger models or full-scale structures, making it difficult to extrapolate and apply test data to the real world.

One innovative solution to this problem is to conduct shake table tests combined with structural actuators of large scale, partial physical structures and employ hybrid simulation techniques to simulate the remainder of the structure and/or mass numerically. Although the concept is not new, it had only been pursued at scales too small for meaningful seismic simulation on very large civil structures.

In 2014, Dr. Yang teamed with his peers from the University of California – Berkeley and MTS Systems Corporation to transform the idea of coupling shake tables with structural actuators for real-time hybrid simulation from concept to practical application.

MTS SOLUTION

Proving that the concept could be applied practically on a large scale required close collaboration, and shared risk, among the three organizations: Tongji University provided the necessary funding, laboratory facilities and physical test equipment; the University of California – Berkeley provided extensive research and modeling expertise; and MTS supplied mechanical test expertise, consulting and advanced controls knowledge and technology.

Critical to achieving success was overcoming the numerous control challenges associated with integrating and synchronizing a dynamic structural actuator with a three degree-of-freedom (3DOF) shake table/real-time hybrid simulation system. According to Dr. Shawn You, MTS System Integration Engineer, these challenges were resolved through the employment of innovative system tuning techniques as well as control calculations needed to compensate for cascading, or amplified, negative damping – a very complex task that required the combined efforts and resources of University of California – Berkeley and MTS researchers and engineers.

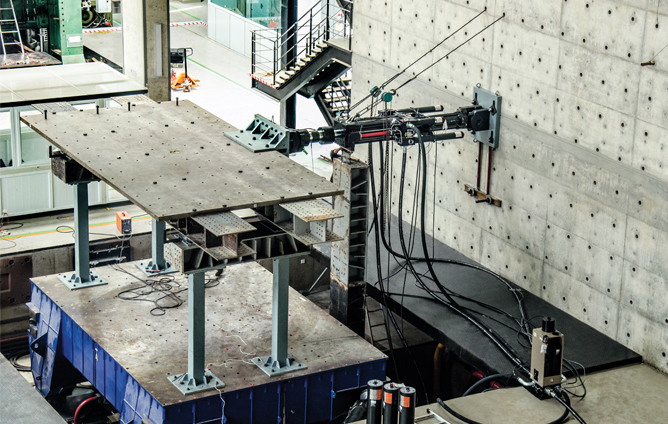

To test their solution, the team set up a seismic test of a bridge bearing component at the Tongji University facility. The test setup comprised a 1:4 scale bridge section with a greatly reduced deck mass mounted on top of a large, 3DOF seismic simulator (shake table) and attached to a dynamic structural actuator mounted to an adjacent strong wall. This physical system was driven by a real-time hybrid simulation system, featuring a powerful MTS FlexTest® controller, a 469D controller, and virtual structure and soil/rock models, all linked together by reflective memory over an OpenFresco communications framework. As the simulation played out, close analysis of the results proved that the system had effectively employed the extra actuator to correctly apply the missing bridge deck mass, resulting in an accurate seismic simulation of the full structure.

Dr. Andreas Schellenberg, a Research Engineer at the University of California – Berkeley and Principal at ASES-Advanced Structural Engineering Solutions, who provided virtual modeling and OpenFresco expertise, lauded the success of the project,

“Up until now, achieving such precise, simultaneous control of a hybrid shake table combined with additional structural actuation had been done only on a relatively small scale. This, however, is the first time it has been realized on such a large scale. This development presents researchers with a valuable new tool for performing high-fidelity seismic simulation on larger structures, yielding far better, more realistic data. The potential applications of this testing technique are very exciting, far reaching and will foster collaboration of researchers in many fields.”

CUSTOMER BENEFITS

Pleased with the results of the collaboration and successful simulation, Dr. Yang feels that the new methods hold great promise for the future of seismic simulation of civil structures. “We can now test larger scale specimens to capture more realistic simulation data, and we will no longer need to build and test complete physical models of buildings – just a few floors or substructures are now enough to simulate the vibration performance of the most critical part of the whole building accurately. Implementing this new method has the potential to greatly reduce test costs, save a lot of time and increase our lab’s operational efficiency.”

The promise of integrating shaker tables and structural actuators into real-time hybrid simulation extends beyond applying calculated structural mass. Additional, multiple actuators could also be used to apply calculated wind and/or wave inputs. Simulations could also be distributed across multiple shake tables, allowing even further increases in specimen scale to achieve greater simulation accuracy. As Dr. Yang asserts, “This development could represent a new era in civil hybrid simulation.”



MTS - Tongji University

Tongji University teams with MTS and the University of California-Berkeley to transform civil hybrid simulation.

Download Case Study
Also of Interest:
  • Static Materials Test Systems >
  • Wind Turbine Test Applications >
  • Materials Tensile Test Applications >
Stay Connected
  • INDUSTRIES
  • Automotive
  • Materials
  • Aerospace
  • Biomedical
  • Civil Engineering
  • Rock Geomechanics
  • Energy
  • Rail
  • SALES & SUPPORT
  • Sales Offices
  • Services
  • Training
  • Parts
  • Customer Portal
  • SUPPLIERS
  • Terms & Conditions
  • Products & Services
  • Expectations
  • Workmanship Standards
  • Packaging & Labeling
  • Routing Guide
  • COMPANY
  • About
  • News
  • Careers
  • Culture
  • Sustainability
  • History
  • SOLUTIONS
  • Applications
  • Test Standards
  • Products
  • RESOURCES
  • Learning Center
  • Solution Finder
  • Quality
  • Product Safety
  • Patents
  • CONTACT US
  • SUPPORT: 952-937-4000
  • Online Request
  • Request A Quote
  • Sales Offices
  • BUSINESSES
  • MTS Systems
  • E2M Technologies
  • R&D Test Systems
  • MTS SANS China
    • © MTS Systems. All Rights Reserved
    • 952.937.4000
    • Privacy Policy
    • Terms Of Use
    • Terms & Conditions
    • Sales Offices
    • Cookie Preferences
We use necessary cookies to make our site work. We'd also like to set up optional analytics cookies to help us improve it. We won't set optional cookies unless you enable them.
Decline Accept
We use necessary cookies to make our site work. We'd also like to set up optional analytics cookies to help us improve it. We won't set optional cookies unless you enable them.
Decline Accept
