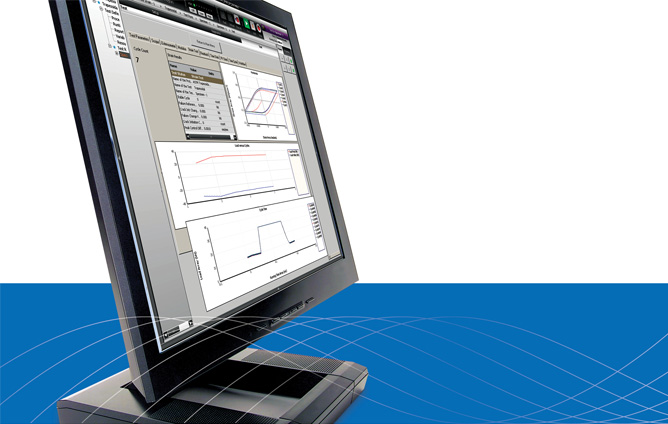

Software TestSuite
Con applicazioni modificabili, modelli e livelli di accesso, puoi creare gli strumenti esatti di cui hai bisogno per il tuo programma di test. Sia che tu stia testando materiali e componenti secondo standard industriali specifici o sviluppando i tuoi test, il software MTS TestSuite renderà più facile ottenere i dati di cui hai bisogno.
Applicazioni
- Caratterizzazione dinamica
- Frattura e fatica
- Test statico
Campioni di test
- Materiali compositi
- Ceramica
- Metalli
- Materie plastiche
- Elastomeri
- Gomma
- Polimeri
Caratteristiche principali del prodotto
Utilizzo semplice e intuitivo
Display grafico del sistema per impostare limiti con facilità
Test più veloci
La funzione Virtual Specimen consente di risparmiare tempo nella configurazione e nell'esecuzione dei test
Potente
Linguaggio di programmazione Iron Python integrato per la creazione e la modifica dei test
Versatilità
Moduli per la progettazione dei test e la messa in funzione delle apparecchiature di test
Confronto modelli
TestSuite TW
- Utilizzato con i sistemi di test Criterion ed Exceed
- Può essere utilizzato con i sistemi Landmark, modello 311 e modello 322
- Con un aggiornamento ReNew, può essere utilizzato con altri sistemi di test universali
- Applicazioni:
- TW Elite: consente di creare, modificare ed eseguire i test
- TW Essential: versione semplificata di TW Elite
- TW Express: consente di eseguire i test
- Modelli di test di base, avanzati e personalizzati
- Creazione dei test tramite "drag and drop"
TestSuite MP
- Utilizzato con Landmark, Acumen, Bionix e altri sistemi di test dinamici
- Applicazioni:
- MP Elite: consente di creare, modificare ed eseguire i test
- MP Express: consente di eseguire i test
- Moduli di fatica, frattura e trazione
- Può effettuare test statici o dinamici
- Disponibili modelli di test standard e personalizzati
- Autotuning assiale e torsionale
- Visualizzazione in tempo reale dei risultati calcolati
- Visualizzazione dei limiti
- Funzione Virtual Specimen per prevedere con precisione il comportamento dei test
Casi di studio correlati
Panoramica tecnica
|
Sample of the many Metals test standards that can be addressed using MTS TestSuite TW templates |
|
| Standard | Description |
|
ASTM E8M |
Standard Test Methods for Tension Testing of Metallic Materials |
|
ISO 6892-1 |
Metallic Materials – Tensile testing at ambient temperature |
|
EN 10002-1 |
Tensile Testing of Metallic Materials |
|
ASTM E9 |
Standard Test Methods of Compression Testing of Metallic Materials at Room Temperature |
|
ASTM E290 |
Standard Test Methods for Bend Testing of Material for Ductility |
|
ISO 7438 |
Metallic Materials – Bend Test |
|
ASTM E21 |
Standard Test Methods for Elevated Temperature Tension Tests of Metallic Materials |
|
ISO 783 |
Metallic Materials – Tensile testing at elevated temperature |
|
ASTM E517 |
Standard Test Method for Plastic Strain Ratio r for Sheet Metal |
|
ASTM E646 |
Standard Test Method for Tensile Strain-Hardening Exponents (n-Values) of Metallic Sheet Materials |
|
ASTM A48M |
Standard Specification for Gray Iron Castings |
|
ASTM A370 |
Standard Test Methods for Mechanical Testing of Steel Products |
|
Sample of the many Polymer test standards that can be addressed using MTS TestSuite TW templates |
|
| Standard | Description |
|
ASTM D790 |
Standard Test Methods for Flexural Properties of Unreinforced and Reinforced Plastics and Electrical Insulating Materials |
|
ASTM D412 |
Standard Test Methods for Vulcanized Rubber and Thermoplastic Elastomers – Tension |
|
ASTM D624 |
Standard Test Method for Tear Strength of Conventional Vulcanized Rubber and Thermoplastic Elastomers |
|
ASTM D638 |
Standard Test Method for Tensile Properties of Plastics |
|
ASTM D695 |
Standard Test Method for Compressive Properties of Rigid Plastics |
|
ISO 178 |
Plastics – Determination of flexural properties |
|
ISO 1798 |
Flexible cellular polymeric materials – Determination of tensile strength and elongation at break |
|
ISO 527 |
Plastics – Determination of tensile properties |
|
ISO 604 |
Plastics – Determination of compressive properties |
|
ASTM D882 |
Standard Test Method for Tensile Properties of Thin Plastic Sheeting |
|
Sample of the many Construction Materials test standards that can be addressed using MTS TestSuite TW templates |
|
| Standard | Description |
|
ASTM A370 |
Tensile Testing & Bend Testing Steel Rebar |
|
ISO 15630 |
Steel for the reinforcement and pre-stressing of concrete – Test methods – Part 1: Reinforcing bars, wire rod and wire |
|
ISO 1920-4 |
Testing of concrete – Part 4: Determination of flexural strength; Determination of tensile splitting strength |
|
ASTM A185/ A185M |
Standard Specification for Steel Welded Wire Reinforcement, Plain, for Concrete |
|
ASTM A615M |
Standard Specification for Deformed and Plain Carbon-Steel Bars for Concrete Reinforcement |
|
ASTM A82/ A82M |
Standard Specification for Steel Wire, Plain, for Concrete Reinforcement |
|
EN 10080 |
Steel for the reinforcement of concrete. Weldable reinforcing steel |
|
ISO 15630-2 |
Steel for the reinforcement and pre-stressing of concrete – Test methods – Part 2: Welded fabric |
|
ASTM F606 |
Standard Test Methods for Determining the Mechanical Properties of Externally and Internally Threaded Fasteners |
|
Sample of the many Polymer Matrix Composite test standards that can be addressed using MTS TestSuite TW templates |
|
| Standard | Description |
|
ISO 527-4 |
Tensile Properties of Isotropic and Orthotropic Fibre-Reinforced Plastic Composites |
|
ISO 527-5 |
Tensile Properties of Unidirectional Fibre-Reinforced Plastic Composites |
|
ASTM D3039 |
Tensile Properties of Polymer Matrix Composite Materials |
|
ISO 14126 |
In-plane Compressive Properties of Fibre-Reinforced Plastic Composites |
|
ASTM D6641 |
Compressive Properties of Polymer Matrix Composite Materials Using a Combined Loading Compression (CLC) Test Fixture |
|
ISO 14125 |
Flexure Properties of Fibre-Reinforced Plastic Composites |
|
ISO 14129 |
In-Plane Shear Stress/Shear Strain Response of Fibre-Reinforced Plastic Composites |
|
ASTM D3518 |
In-Plane Shear Response of Polymer Matrix Composite Materials |
|
ISO 14130 |
Fibre-Reinforced Plastic Composite – Determination of Apparent Interlaminar Shear Strength by Short-Beam Method |
|
ASTM D2344 |
Short-Beam Strength of Polymer Matrix Composite Materials and Their Laminates |
We can provide pre-packaged templates for a wide array of additional materials, including: textiles, paper products, packaging, adhesives, foam, composites and more.
MTS TestSuite Fatigue Modules and Supported Standards
|
Fatigue Modules |
Scope |
ASTM Standards |
Contents |
|
Low-Cycle Fatigue |
LCF testing up to 12 Hz |
E606 |
Test Template |
|
|
|
D3479 |
Report Template |
|
|
Includes templates for LCF and |
|
Analysis Definition |
|
|
transition to HCF tests |
|
|
|
High-Cycle Fatigue |
High-cycle fatigue testing up to 70 Hz |
E466 |
Test Template |
|
|
|
D3479 |
Report Template |
|
|
|
|
Analysis Definition |
|
Advanced Low-Cycle Fatigue |
Constant-amplitude, strain-controlled |
E606 |
Test Template |
|
|
fatigue testing up to 12 Hz |
D3479 |
Report Template |
|
|
|
|
Analysis Definition |
|
|
Calculates and corrects for thermal expansion |
|
Custom Wave Form Activity |
|
|
during non-ambient temperature testing |
|
|
|
Advanced High-Cycle Fatigue |
High-cycle fatigue testing up to 70 Hz |
E466 |
Test Template |
|
|
|
D3479 |
Report Template |
|
|
Calculates and corrects for thermal expansion |
|
Analysis Definition |
|
|
during non-ambient temperature testing |
|
|
|
Thermomechanical Fatigue (TMF) |
Thermomechanical fatigue testing |
E2368 |
Test Template |
|
|
|
European Validated Code of |
Report Template |
|
|
|
Practice for Strain-Controlled |
|
|
|
|
TMF Testing EUR 22281 EN |
|
MTS TestSuite Fracture Modules and Supported Standards
|
Fracture Modules |
Scope |
ASTM Standards |
Contents |
|
Clip Gage Fatigue Crack Growth |
Fatigue crack growth testing using a |
E647 |
Test Template |
|
|
clip gage and compliance method |
|
Report Template |
|
|
as measurement |
|
Analysis Definition |
|
Direct Current Potential Drop (DCPD) Fatigue Crack Growth |
Fatigue crack growth tension testing using DCPD systems to measure crack length |
E647 |
Test Template Report Template |
|
|
|
|
Analysis Definition |
|
KIc Fracture Toughness |
Fatigue pre-cracking, using the compliance |
E399 |
Test Template |
|
|
method as primary crack length measurement |
|
Report Template |
|
|
|
|
Analysis Definition |
|
Crack-Tip Opening Displacement (CTOD) Fracture Toughness |
Determines critical CTOD values at one or more of several crack extension events |
E1290 |
Test Template Report Template |
|
|
|
|
Analysis Definition |
|
|
CTOD values can be used as measures |
|
|
|
|
of fracture toughness |
|
|
|
JIc-CTOD Fracture Toughness |
Fatigue pre-cracking, using the compliance |
E1820 |
Test Template |
|
|
method as primary crack length measurement |
|
Report Template |
|
|
|
|
Analysis Definition |
